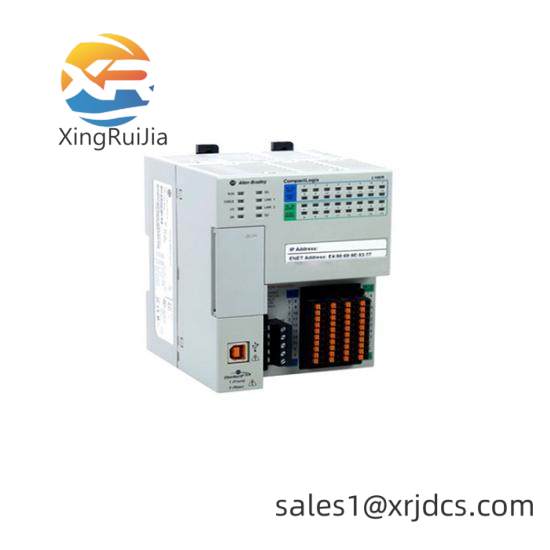

Allen-Bradley 1769-L16ER-BB1B CompactLogix Controller

Memory Capacity:384 KB

Module Expansion:Up to 6 modules

Digital Inputs (DI):16 sink

Digital Outputs (DO):16 source

Network Communications:Class 1, 3 networks

TCP Connections:4

Ethernet Ports:2 (DLR)

Backplane Interface:POINT bus

Storage:1 GB SD card

Power Supply:24V DC

    The Allen-Bradley 1769-L16ER-BB1B CompactLogix controller is an advanced solution for modern industrial environments, boasting high performance and scalability. This compact yet powerful device is equipped with a robust 384 KB memory, enabling it to handle complex control tasks efficiently.

    With expansion capabilities up to 6 modules, this controller offers flexibility to accommodate various applications, from simple to highly sophisticated control systems. The inclusion of 16 digital inputs (sink) and 16 digital outputs (source) ensures precise control over industrial processes, supporting a wide range of operations.

    The use of a POINT bus backplane facilitates easy integration with other Allen-Bradley components and third-party devices, enhancing system interoperability. The dual Ethernet ports with Direct Link Routing (DLR) capability provide a fast and secure communication link, essential for data-intensive applications.

    The controller supports Class 1, 3 network communications, ensuring compatibility with existing industrial networks. It also supports up to 4 TCP connections, allowing for concurrent communication with different systems or devices. With its ample storage capacity of 1 GB, the controller is well-equipped to manage large datasets without compromise.

    Engineered for durability and reliability, the Allen-Bradley 1769-L16ER-BB1B controller is ideal for harsh industrial environments. Its intuitive design and comprehensive feature set make it a preferred choice for system integrators and engineers looking to streamline their control systems.
