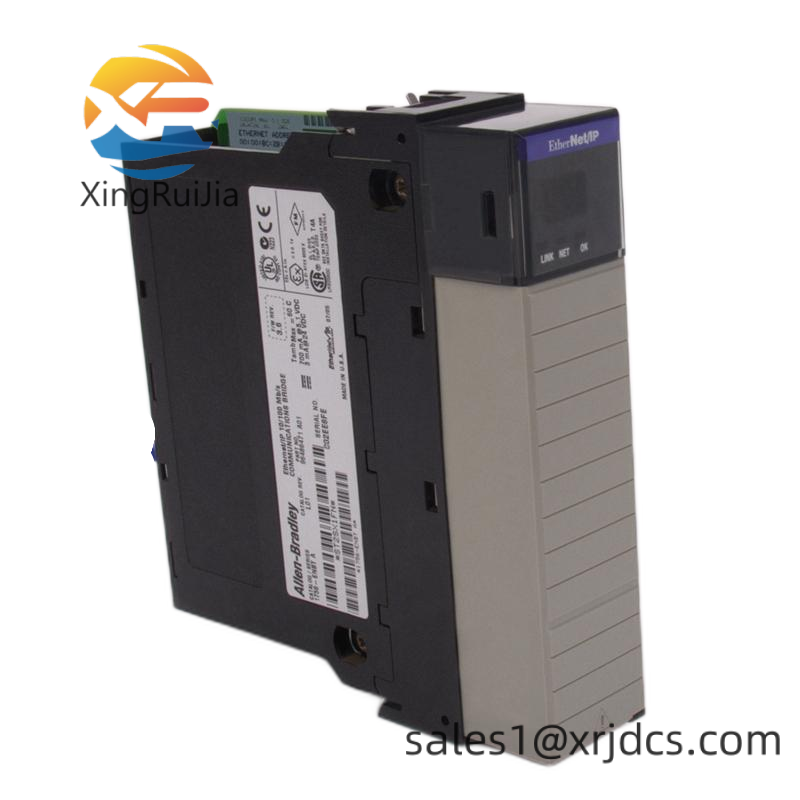

Allen-Bradley AB 1756-EN3TR ControlLogix Ethernet Bridge Module

Model Type:Ethernet Bridge Module

Manufacturer:Allen Bradley

Model Number:1756-EN3TR

Communication Protocol:Ethernet/IP

Mounting:Chassis

Temperature Rating:0 – 60 °C

Power Dissipation:1.2 W

Isolation:30 V Continuous

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration:2 G

Shock:30 G

Connection:Ethernet

Enclosure:Open Type

RFI Suppression:Radiated: 10 V/M With 1 KHZ Sine-Wave 80% AM From 80 – 2000 MHZ, Conducted: 10 VRMS With 1 KHZ Sine-Wave 80% AM From 150 KHZ – 80 MHZ

    The Allen-Bradley AB 1756-EN3TR ControlLogix EtherNet Bridge Module is a robust solution designed to enhance the connectivity within complex industrial automation systems. This high-capacity module ensures stable data exchange between ControlLogix controllers and EtherNet/IP networks, making it ideal for manufacturing, processing, and other industries requiring high-speed, reliable communication.

    Equipped with advanced isolation technology, this module provides continuous protection against electrical disturbances, ensuring uninterrupted operation even under challenging environmental conditions. Its wide temperature range (-40°C to +70°C) and robust vibration and shock resistance guarantee reliability in various industrial environments.

    Featuring an open type enclosure, the 1756-EN3TR is easy to integrate into existing control systems without compromising on space or installation flexibility. It supports shielded or unshielded twisted pair cables, offering compatibility with a wide array of cabling solutions for diverse applications.

    With support for 10/100 Mbps Ethernet communication speed and EtherNet/IP protocol, the module ensures fast data transfer rates, crucial for real-time control and monitoring processes. This capability is particularly beneficial in scenarios requiring high throughput and low latency, such as robotics, process control, and data-intensive applications.

    In summary, the Allen-Bradley AB 1756-EN3TR ControlLogix EtherNet Bridge Module is a critical component for enhancing the performance and connectivity of industrial automation systems. Its combination of high-speed communication, robust physical specifications, and compatibility with industry-standard protocols makes it an indispensable asset for modern manufacturing facilities.
