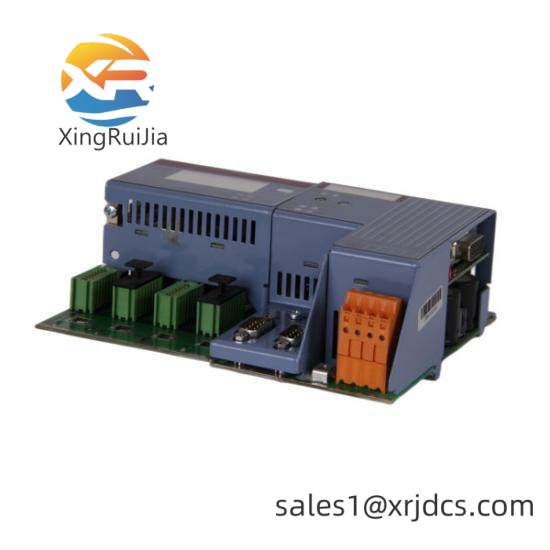

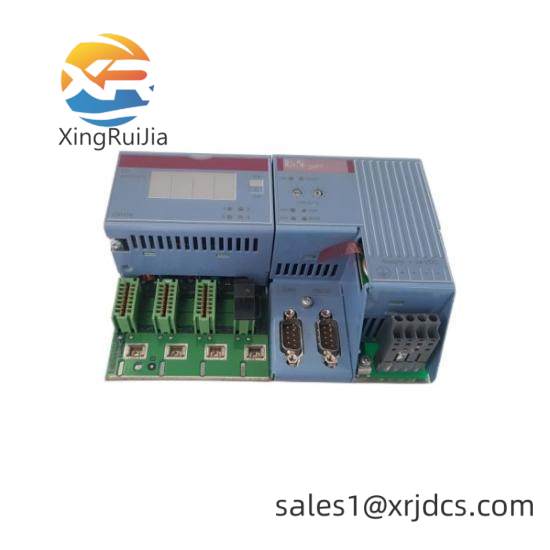

B&R 7CM41170-1 Hybrid Module – Industrial Control Integration

Order Number:7CM41170-1

Brand:B&R

Model:7CM41170-1

Input Channels:8

Input Voltage:24 VDC

Input Response Time:4 ms

Input Type:Sink

Counter Channels:3 one-channel or 2 two-channel counters

Encoder Channels:2 incremental encoders

Encoder Frequency:20 kHz

Output Channels:8

Output Voltage:24 VDC

Output Current:0.5 A per channel

Comparator Function:Yes

Short Circuit Protection:Yes

Analog Inputs:2, ±10 V / 0 to 20 mA, 12-bit resolution

Analog Outputs:2, ±10 V, 12-bit resolution

Additional Features:Comparator function, short circuit protection, order 2x TB718 terminal blocks separately

    This advanced hybrid module from B&R combines digital and analog signal processing capabilities, making it an essential component for any industrial automation setup.

     Its 8 digital inputs and 2 analog inputs allow for flexible integration with various sensors and devices, while the 4 digital outputs and 1 analog output provide robust control over actuators and other machinery.

     With its high sampling rate of up to 20 kHz, this module ensures accurate and timely data acquisition, ideal for monitoring and controlling processes in real-time.

     Short-circuit and overload protection features safeguard against damage, ensuring reliable operation under demanding conditions.

     Designed with ease of installation and maintenance in mind, this hybrid module enhances system efficiency and performance, contributing to higher productivity in manufacturing operations.
