Board Type:Mark VI Turbine Control System
Board Model:IS200VSVOH1BED
Module Type:Circuit Board
Dimensions:11 x 6 x 6.7 cm
Weight:0.14 kg
Connectors:Six connectors including two backplanes (P1/P2) and four conductive traces (P3-P6)
Components:Four relays (K1-K4), resistors, capacitors, TP test points, and inductor beads (L1-L10)
Integrated Circuits:Over seventy ICs

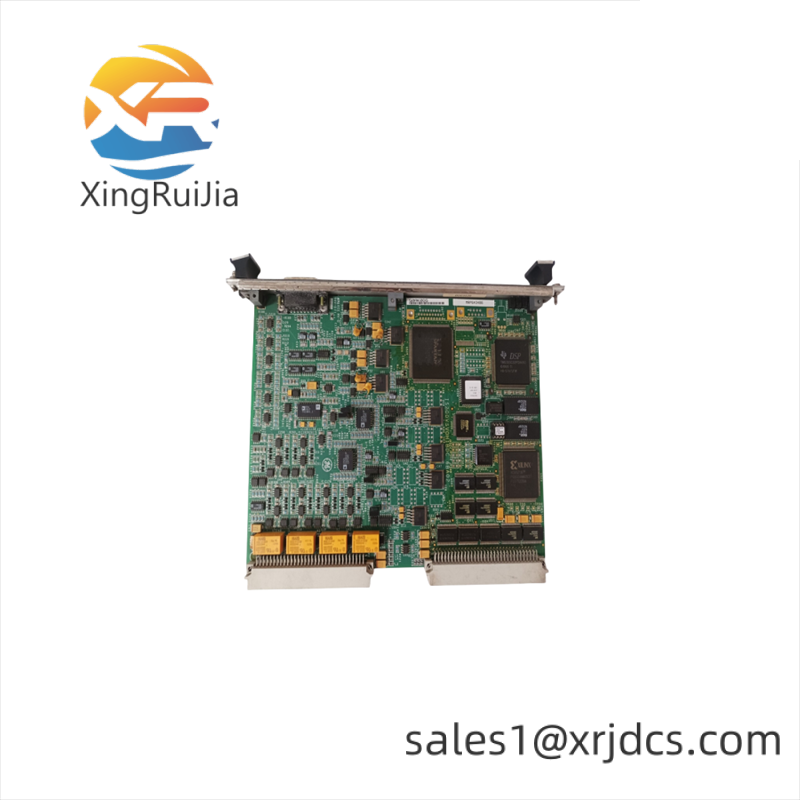

The IS200VSVOH1BED circuit board from GE is specifically engineered for seamless integration into industrial control systems, ensuring optimal performance and reliability.
Featuring an intuitive design, this circuit board offers six connectors for versatile connection options, including two backplanes and four connectors equipped with conductive traces for enhanced data transmission.
With a robust layout of resistors, capacitors, TP test points, and inductor beads, the IS200VSVOH1BED ensures precise signal processing and stable operation in challenging industrial environments.
This circuit board is populated with over seventy integrated circuits, providing a comprehensive set of functionalities to meet diverse control requirements in industrial automation.
Each component on the IS200VSVOH1BED board is meticulously designed to facilitate efficient diagnostics and maintenance, ensuring minimal downtime and maximum system uptime.
